BDBG-09

BDBG-09

Blok detektowania promieniowania gamma (intelektualny)

  • Zgodny z wymaganiami IEC 60532:2010
  • Zgodny z wymaganiami dotyczącymi oznakowania СЄ
  • Zgodny z wymaganiami IEC 61000-4-2:2008, IEC 61000-4-3:2007, IEC 61000-4-4:2008
  • Numer w rejestrze państwowym przyrządów pomiarowych U2071-05
  • Wniosek państwowej ekspertyzy sanitarno-higienicznej nr 05.03.02-04/90055 od dnia 19.11.2010r.
  • ТУ У 33.2-22362867-009:2004
Zamówić Zadać pytanie

    Feedback

    1624BDBG-09

    BDBG-09S

    More


    765BDBG-09

    BDBG-09 wodoodporny

    More



    Opis

    Przeznaczony jest do pomiaru mocy otaczającego ekwiwalentna dawki promieniowania gamma, stosowany jest w składzie tablic informacyjnych i systemu automatyzowanego monitorowania radiacyjnego.

    Wersja standardowa BDBG-09 wykonana jest z wbudowanym licznikiem Geigera-Müllera Także jest modyfikacja bloku detektowania na podstawie detektora scyntylacyjnego. Na życzenie zleceniodawcy obudowę BDBG-09 można wykonać z duraluminium albo ze stali nierdzewnej. Do wykorzystania w zbiornikach wodnych i sztucznych opracowano specjalną wersję bloku detektowania z obudową wodoodporną.

    Już kilka lat blok detektowania BDBG-09 skutecznie wykorzystuje się na elektrowniach atomowych Ukrainy, Francji, Bułgarii i Korei.

    Przeznaczenie

    • Measurement of ambient dose equivalent rate (DER) of gamma radiation.

    Właściwości

    • Data exchange between the detecting unit and the data display system through RS-485 interface.

    • Constant self-testing.

    • Indication of the statistical measurement error.

    • Ingress protection rating – ІР67.

    • Average service life of the detecting unit – not less than 10 years.

    Podstawowe charakterystyki techniczne

    Measurement range of gamma radiation DER and main relative error 0.04 µSv/h…10 Sv/h;(0.04 µSv/h…100 Sv/h on demand)
    ±(15+2/H*(10))%, where H*(10) is a numeric value of measured DER equivalent to µSv/h
    Energy range of registered gamma and X-ray radiation and energy dependence MeV 0.05…3.0; (0.05…1.25; ±25%)
    Integration time seconds 2…420
    Setup time of operating mode of the detecting unit min 3
    Operating supply voltage of the detecting unit from external power supply V 7 … 13,5
    Maximum current consumption of the detecting unit mA 30
    Operating temperature range °С -40…+75
    Weight of the detecting unit without fastening elements kg 0.5
    Dimensions of the detecting unit without fastening elements mm 170x60x60
    Download operating manual

    Certyfikaty

    • Certificate of Conformity № UA.TR.113-0113/01F-17 from September, 25 2017

    • Type Examination Certificate № UA.TR.113-0113-17 from September, 18 2017

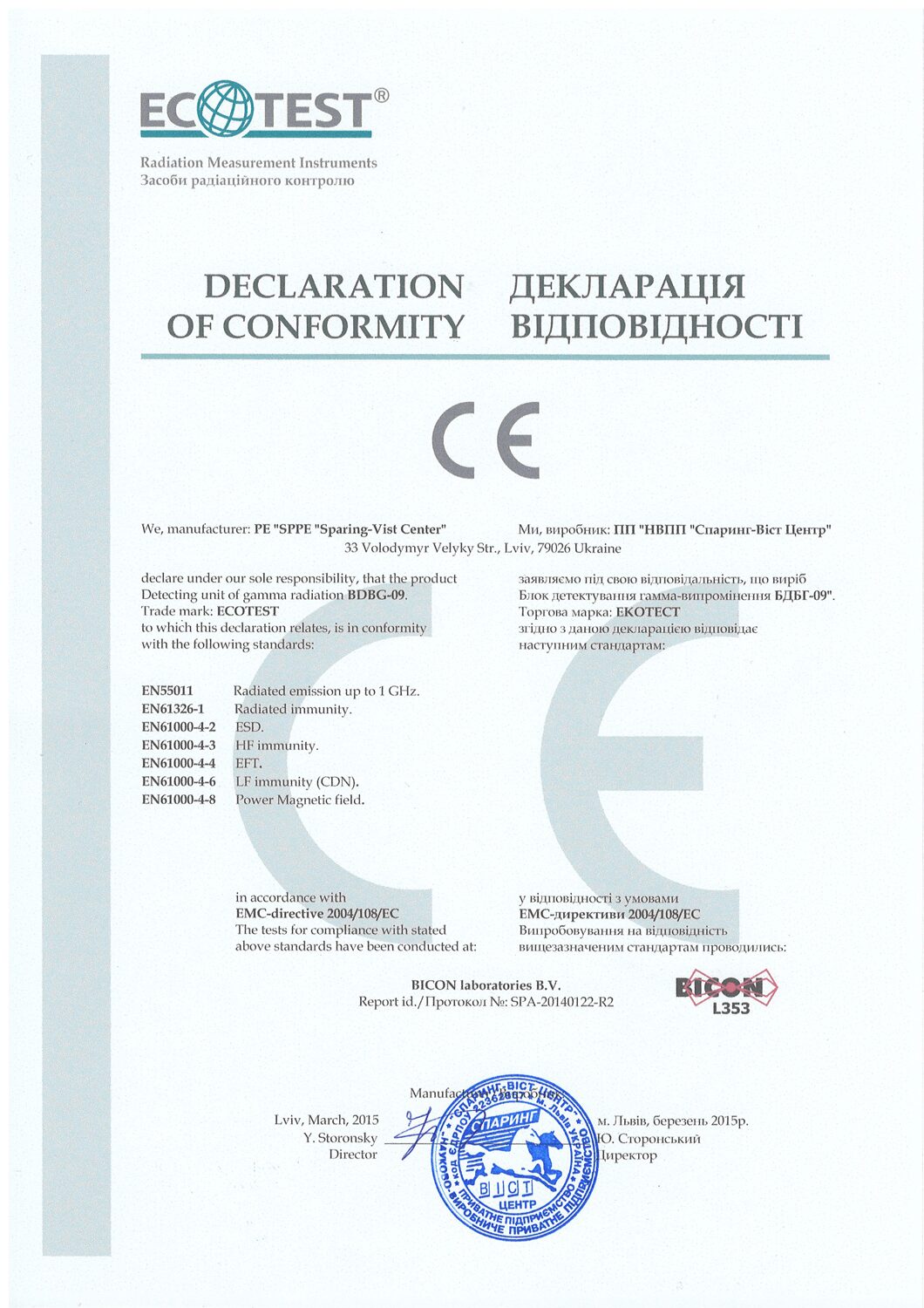

    • Declaration of conformity with the CE standards. The tests for compliance have been conducted at BICON laboratories B.V. (the Netherlands)

    • Type approval certificate #0111-CS-A038-18 issued by Czech metrology institute that confirms BDBG-09 compliance with the IEC 60532:2010 standard.

    Zestaw

    • BDBG-09 detecting unit of gamma radiation;
    • corbel for vertical mounting of the unit;
    • cable connector;
    • technological kit used for testing of the detecting units (one kit per one consignment of the detecting units on demand), including: serial port adapter with power supply unit for а PC connection; technological cables (2 pcs.); technological software CD (1 pc.);
    • technical description and operating manual (one copy per one consignment of the detecting units);
    • logbook;
    • packing box.
