Gamma Radiation Warning Device

aGent-R

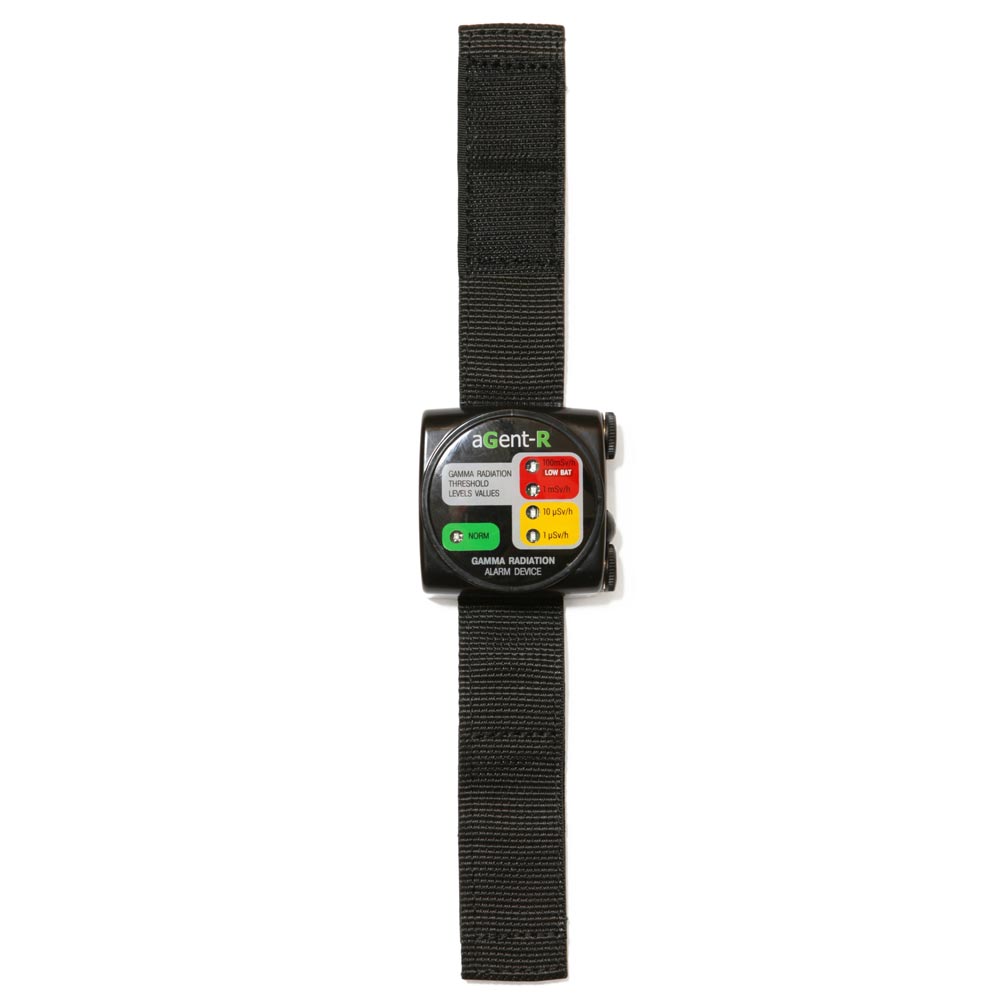

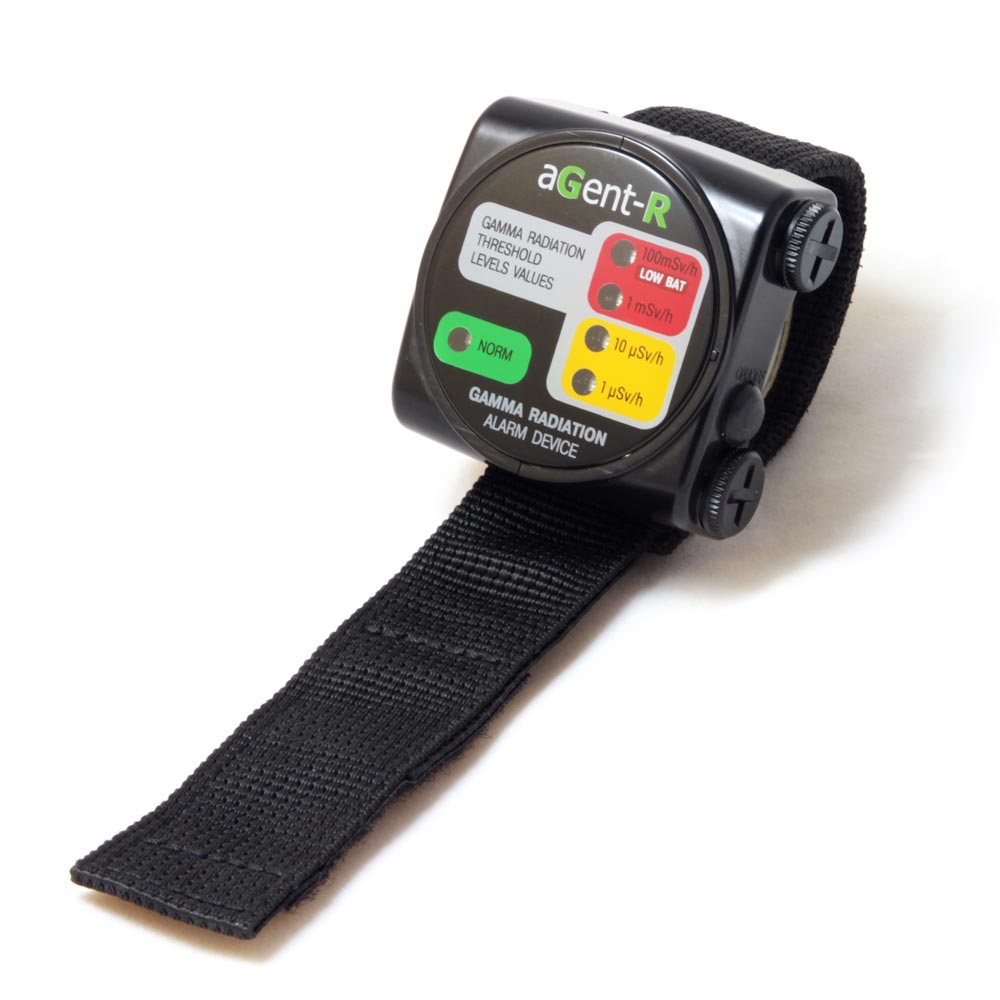

aGent-R is a wrist-type radiation detection watch in a shock-resistant body.

aGent-R is designed for emergency services and law enforcement agencies. Due to its simplicity, convenience, and reliability the radiation detection watch became also popular among people who use it in everyday life.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

LED and vibrating alarm of threshold levels exceeding with the option to turn off the vibrating alarm
Non-stop performance monitoring of the built-in Geiger-Muller counter and of the warning device
Manual control of the built-in vibration instrument and residual capacity of batteries with the corresponding LED indication
Periodic vibrating and LED alarm when residual battery capacity becomes less than 10 %
Automatic vibrating and LED alarm when residual battery capacity is less than 5 %, with the following switching-off of the warning device

Purpose of Use

Detection of the increased levels of gamma radiation and their estimation by means of the four-level threshold alarm system

Delivery Kit

gamma radiation warning device
leather case
operating manual
package

Dynamic range of gamma radiation DER registration

10·10^-8 … 10 Sv/h

Energy range of gamma radiation DER registration

0.05 … 3 MeV

Threshold levels of gamma radiation DER *

– first threshold

1 μSv/h

– second threshold

10 μSv/h

– third threshold

1 mSv/h

– forth threshold

100 mSv/h

* threshold levels can be changed upon customer’s request

Main relative permissible error limit of threshold alarm of gamma radiation DER with confidence probability of 0.95

25 %

Time of operating mode setting, not more

120 s

Time of continuous operation of the alarm device when powered from two new AAAA alkaline batteries of 550 mA·h at natural background radiation, ambient air temperature (20 ± 2) °С and residual battery capacity testing maximum 3 times per 24 hours, not less

1 300 h

Operating supply voltage

3 V

Complementary permissible error limit of threshold alarm caused by supply voltage variations from standardized value within 3 ... 2.2 V

±10 %

Complementary permissible error limit of threshold alarm caused by ambient air temperature variations from -20 °С to +50 °С, per each 10 °С deviation from +20 °С

±5 %

Operating temperatures range

-20 … +50 °С

Dimensions of the device without a strap, not more

55 × 55 × 27 mm

Weight of the device, not more

0.11 kg
