Detecting Unit of Gamma Radiation

BDBG-15S

BDBG-15S is designed to measure ambient dose equivalent rate of gamma radiation in a wide range of values.

Suitable for unmanned aerial vehicles, mobile robotic devices, and automated systems of radiation monitoring.

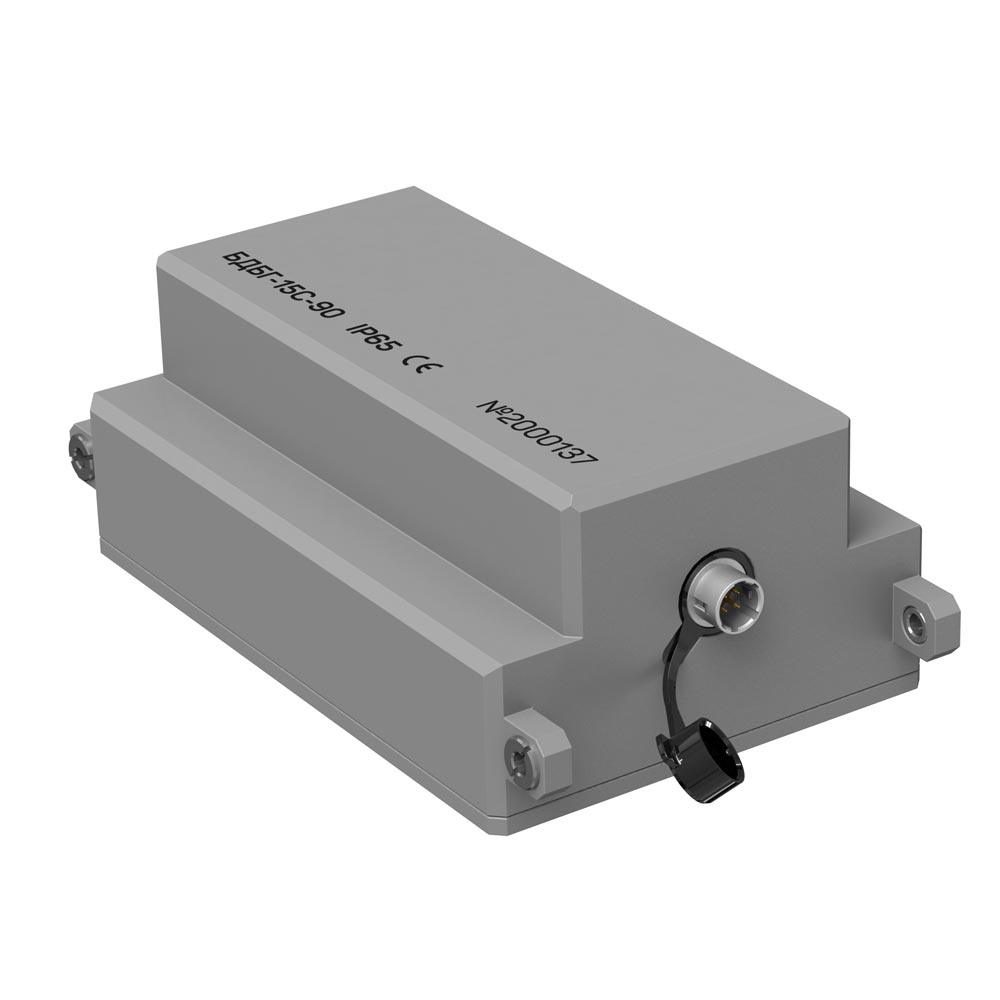

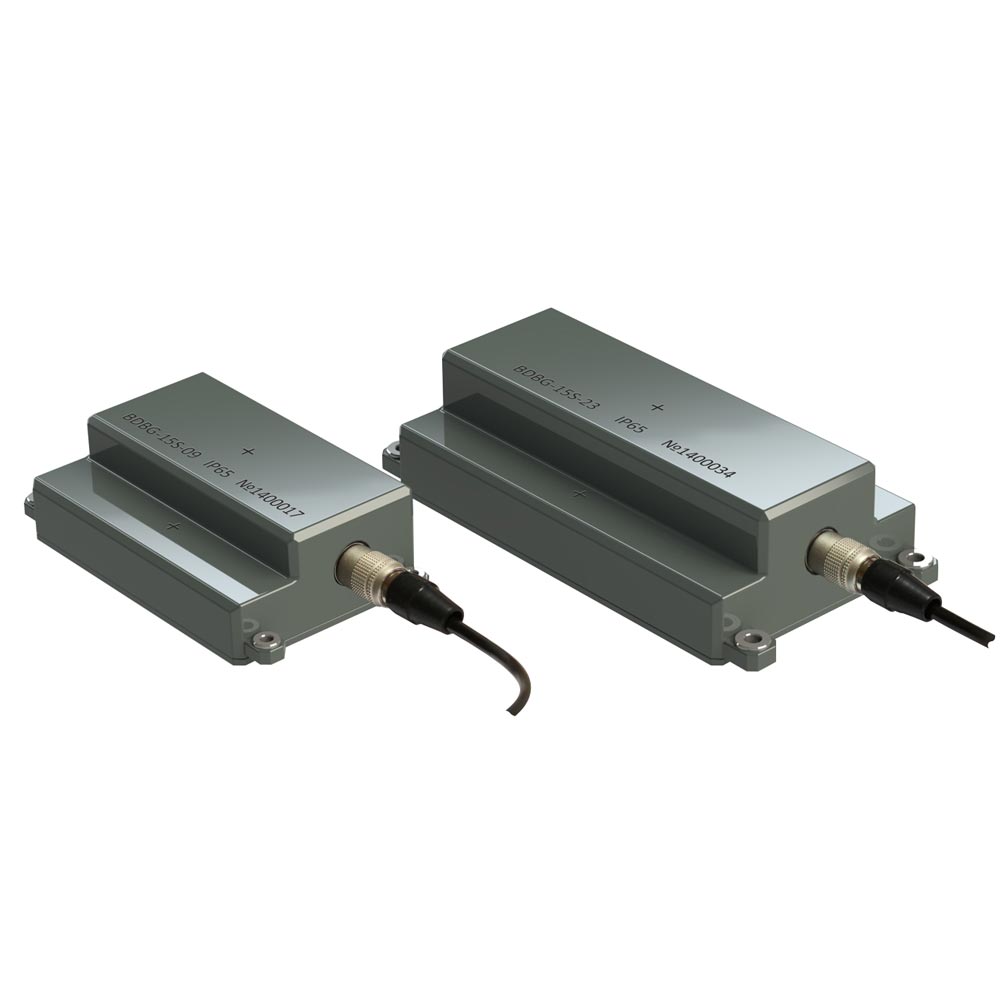

BDBG-15S is available in three versions BDBG-15S-09, BDBG-15S-23 and BDBG-15S-90, which differ in the size and sensitivity of the scintillation detector.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

Scintillation CsI (Tl) detector with a photomultiplier for measurements in the 0.01 μSv/h to 50 μSv/h range (spectrum-dose function):
- 9 cm³for BDBG-15S-09
- 23 cm³ for BDBG-15S-23
- 90 cm³ for BDBG-15S-90
Energy-compensated Geiger-Muller counter for measurements in the 50 μSv/h to 1 Sv/h range (except BDBG-15S-90)
High sensitivity regardless of minimum weight and dimensions
Ability to extend a measurement range up to 5 Sv/h (at request)
Availability of amplitude spectrum (1 024 channels)
High mechanical immunity
No microphone effect

Purpose of Use

Measurement of ambient dose equivalent rate (DER) of gamma radiation

Delivery Kit

detecting unit of gamma radiation
socket with plug (for connecting cable)
operating manual
package

Specifications BDBG-15S

BDBG-15S-09

BDBG-15S-23

BDBG-15S-90

Measurement range of gamma radiation DER:

0.01 ... 10⁶ μSv/h

0.01 ... 150 μSv/h

а) built-in scintillation detector (highsensitivity channel)

0.01 ... 50 μSv/h

b) built-in Geiger-Muller counter (lowsensitivity channel)

50 ... 10⁶ μSv/h

Basic relative permissible error limit of gamma radiation DER measurement at ¹³⁷Cs calibration with confidence probability of 0.95, not more than

15 %

Scintillation detector sensitivity to Cs¹³⁷ per 1 μSv/h, not less than

200 pulse/s

480 pulse/s

1 500 pulse/s

Energy range of registered gamma radiation

0.05 ... 3 MeV

Energy dependence of measurement results of the detecting unit at gamma radiation DER measurement in the energy range of 0.05 MeV to 1.25 MeV

±25 %

Operating supply voltage range of the detecting unit from external regulated power supply

7 ... 32 V

Useful current of the detecting unit for overall range of measured gamma radiation DER, not more than

30 mA

Time of operating mode setting and measurement time of the detecting unit, not more than

1 min

Unstable readings of the detecting unit during 24-hour continuous operation, not more than

5 %

Complementary permissible error limit at measurement caused by ambient temperature change from -30 ^оС to +50 ^оС

2 % per each 10 ^оС deviation from 20 ^оС

Interface

RS-485 or UART (Rx, Tx-3.3 V)

RS-485

Dimensions of the detecting unit, not more than

103 × 57 × 29 mm

140 × 70 × 38 mm

140 × 80 × 50 mm

Weight of the detecting unit without fastening elements, not more than

0.25 kg

0.42 kg

0.76 kg

Operating Manual BDBG-15S-09

Operating Manual BDBG-15S-23

Operating Manual BDBG-15S-90

CE Declaration of Conformity
