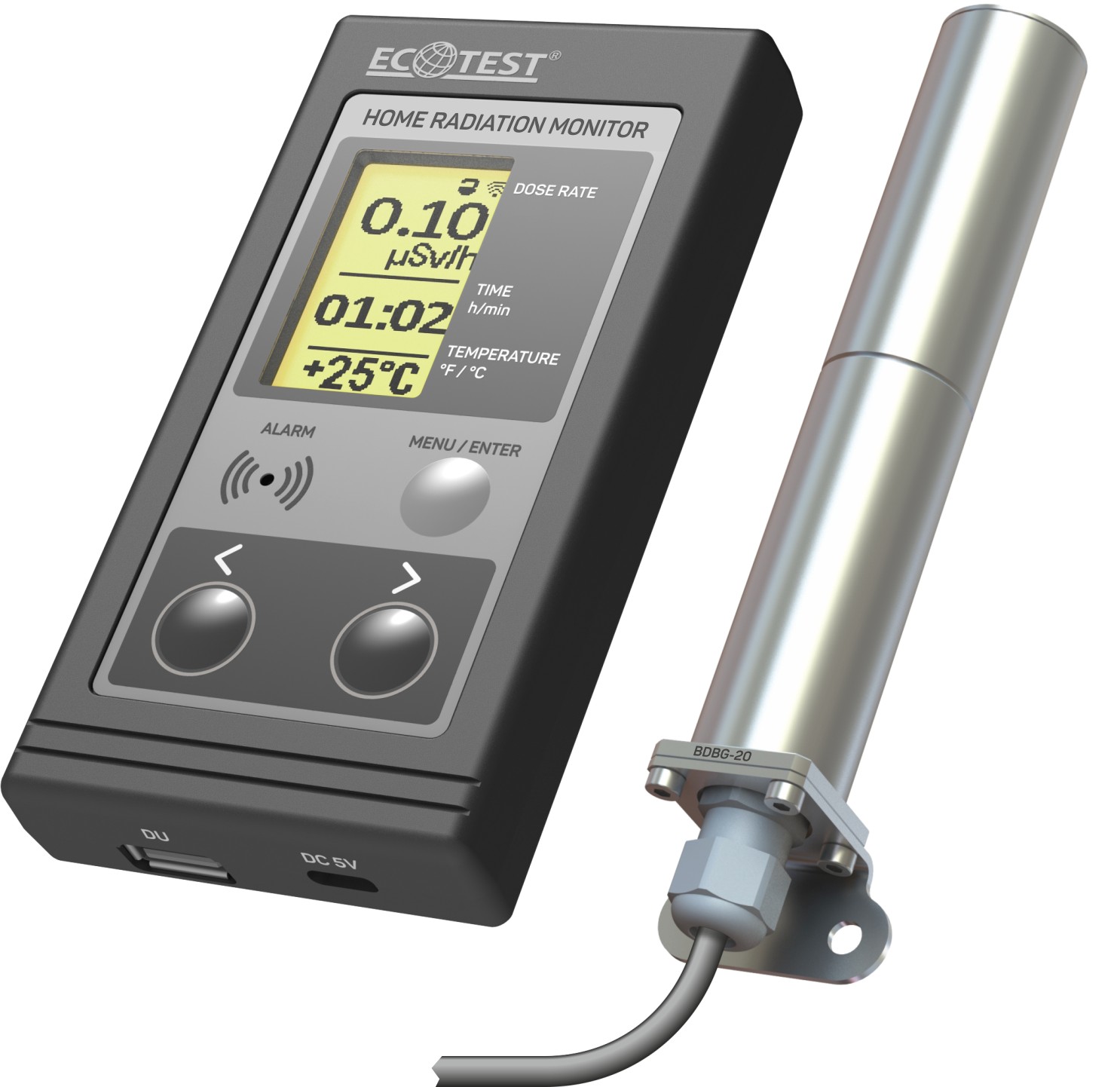

Home Radiation Monitor

The НRM is used for domestic purposes: to monitor the radiation purity of the surrounding area, provided that its detecting unit is located on the facade of the house, as well as residential premises, buildings and structures, if its detecting unit is located inside the building.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

Due to the built-in WiFi module and a special built-in web interface, HRM can also be used to form a radiation monitoring network
The НRM provides for setting two threshold levels of sound and light alarm in the range from 0.01 μSv/h to 9.99 mSv/h with a resolution of 0.01 μSv/h. If the threshold levels are exceeded, it is accompanied by an alarm with different sounds for each threshold and a change in the color of the display backlight from white to red
The built-in temperature sensor in the BDBG-20 detecting unit makes it possible to measure the ambient temperature at its location

Purpose of Use

The НRM is designed for continuous monitoring of the radiation gamma background in the environment by measuring the ambient dose equivalent rate (DER) of gamma radiation, as well as for sound and light signaling in case of an increase in the level of radiation above the established threshold levels

Delivery kit

НRM control unit
BDBG-20 detecting unit of gamma radiation
power adapter (the model is not specified)
operating Manual
installation kit for attaching the НRM control unit and the detecting unit to the wall
packing box

Measurement range of gamma radiation DER

0.01 ... 10⁴ μSv/hour

Main relative permissible error limit of gamma radiation DER measurement at ¹³⁷Cs calibration with confidence probability of 0.95

(15+2/H*(10)) %, where H*(10) – is a numeric value of gamma radiation DER, equivalent to μSv/hour

Energy range of detected gamma radiation

0.05 ... 3 MeV

Energy dependence of the detecting unit’s measurement results during gamma radiation DER measurement in the energy range of 0.05 MeV to 1.25 MeV

±25 %

Time of operating mode setting and measurement time of the BDBG-20 detecting unit, not more than

3 min

Additional relative permissible error limit caused by a change in the ambient temperature from -25 ^оС to +55 ^оС

5 % per each 10 ^оС of deviation from 20 ^оС

Ingress protection rating of:

– the detecting unit

IP67

– the control unit

IP20

Dimensions of the detecting unit:

– hermetic housing without fasteners

27 × 27 × 165 mm

– length of the connecting cable

3 m

Weight of the detecting unit (with the connecting cable) without fasteners, not more than

0.3 kg

Operating temperature range of:

– the detecting unit

-25 ... +55 °С

– the control unit

0 ... +50 °С

Supply voltage of the control unit (USB Type C)

5 V

Useful current, not more than

1 A

Dimensions of the control unit, not more than

68 × 130 × 20 mm

Weight of the control unit without fasteners, not more than

0.15 kg

Supported WiFi networks

802.11 b/g/n
