Personal Gamma Radiation Dosimeter

DKG-21 EcotestCARD

EcotestCARD is a direct reading personal dosimeter for personnel exposure monitoring. This dosimeter badge can be used either independently or within the automated system of personal dosimetry control.

In 2011, the Ministry of Emergency Situations of Ukraine sent EcotestCARD dosimeters to Japan as humanitarian aid for recovery from the accident at the Fukushima NPP, where they gained a reputation of a reliable and precise product.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

Storage of dose accumulation history in the non-volatile memory with real-time reference
Transfer of dose accumulation history through the infrared port to the computer
Blocking the mode of power supply switch off until the data reading procedure finished
Gamma and X-ray radiation DER and DE threshold levels programming with the help of the computer or manually with control keys
Blocking certain indication modes in response to the computer command
Light and audio alarms when programmed threshold levels exceeded on DER and DE of gamma and X-ray radiation
Display automatic switch off if current gamma background is lower than the preset threshold level with instant switching on at:
- pressing any control key
- gamma background increase above the preset threshold level
- alarm clock ringing
Periodic self-testing of batteries and detector
Energy-compensated Geiger-Muller counter
Ingress protection rating IP31
Clock, alarm clock
Software allows to:
- program parameters and operating modes
- read dosimetric measurement results
- review and print dosimetric information as reports
- save and export read information as a report or text file for further processing by other text editors
- import previously stored dosimetric information for processing and analysis

Purpose of Use

Measurement of individual dose equivalent (DE) of gamma and X-ray radiation
Measurement of individual dose equivalent rate (DER) of gamma and X-ray radiation

Delivery Kit

personal gamma radiation dosimeter
storage battery *
charging device **
operating manual
case
USB/IrDA adapter ***
software ****

* Storage batteries of other manufacturers are allowed provided that they are not inferior to the specified characteristics and ensure safety, quality and reliability
** micro-USB, 5 V, 0.5 А
*** Supplied at a separate order
**** Application software for PCs running Windows OS enabling data exchange with the personal dosimeter

DER measurement range varies

0.1 µSv/h ... 1 Sv/h

Main relative permissible error limit of DER measurement at 0.95 confidence probability is:

- in the DER range of 1 μSv/h to 10 μSv/h (included)

20 %

- in the DER range of 10 μSv/h to 1 Sv/h

15 %

Measurement range of DE in the DER range of 0.1 µSv/h to 1 Sv/h

0.001 mSv ... 9 999 mSv

Main relative permissible error limit of DE measurement in the DER range of 1 µSv/h to 1 Sv/h in the DE range of 0.01 mSv to 9 999 mSv at 0.95 confidence probability is

15 %

Complementary relative permissible error limit of gamma radiation DER and DE measurement caused by ambient temperature change from -20 ^oС to +50 ^oС is

5 % per each 10 ^oС of deviation from 20 ^oС

Energy range of registered gamma radiation is

0.05 MeV to 6 MeV

Energy dependence of gamma radiation DER and DE measurement in the energy range of 0.05 MeV to 1.25 MeV relative to 0.662 MeV energy is not more than

±25 %

Time of operating mode setting at DER measurement, not more than:

- from 1∙10^-6 Sv/h to 5∙10^-6 Sv/h (inclusive), maximum

30 minutes

- from 5∙10^-6 Sv/h to 2∙10^-5 Sv/h (inclusive), maximum

5 minutes

- from 2∙10^-5 Sv/h to 1 Sv/h, maximum

3 minutes

Time of DER measurement, not more than:

- in the DER range of 1 μSv/h to 10 μSv/h

10 s

- in the DER range of 10 μSv/h to 1 Sv/h

5 s

Continuous operation time when powered from freshly charged storage battery under normal background is at least

3 000 hours

Unstable readings during 8 hours of continuous operation, not more than

5 %

The dosimeter is powered from Li-ion storage battery (a rated capacity of 120 mAh)

3.2 V ... 4.2 V

Operating DC supply voltage

3.7 V

Dimensions, not more than:

90 x 55 x 10 mm

Weight, not more than

0.08 kg

Operating Manual

CE Declaration of Conformity

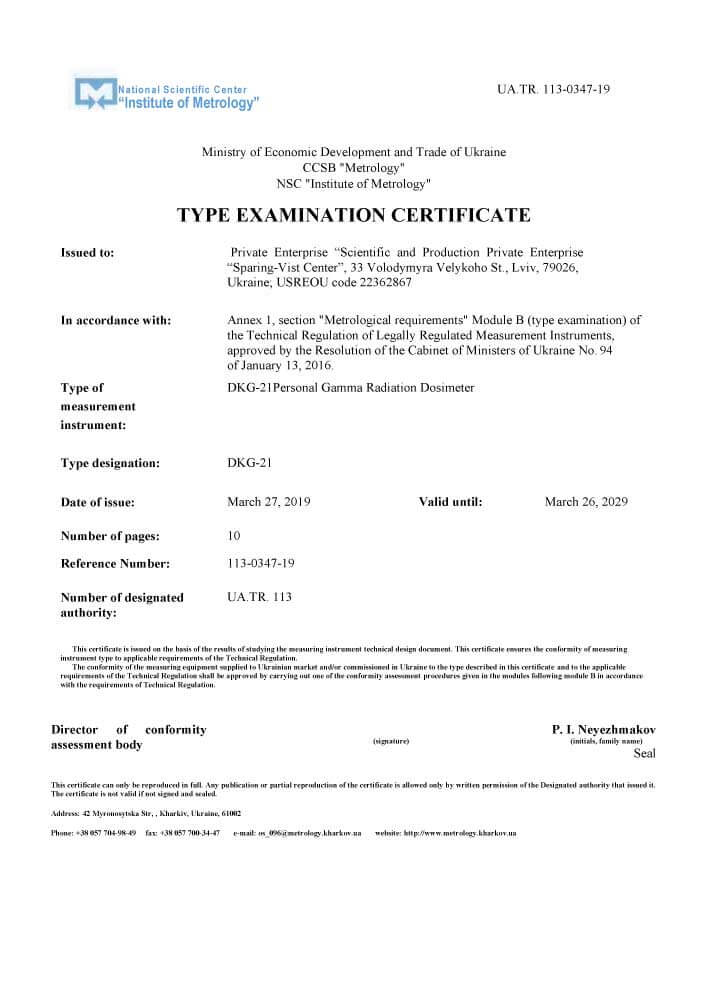

Type Examination Certificate
