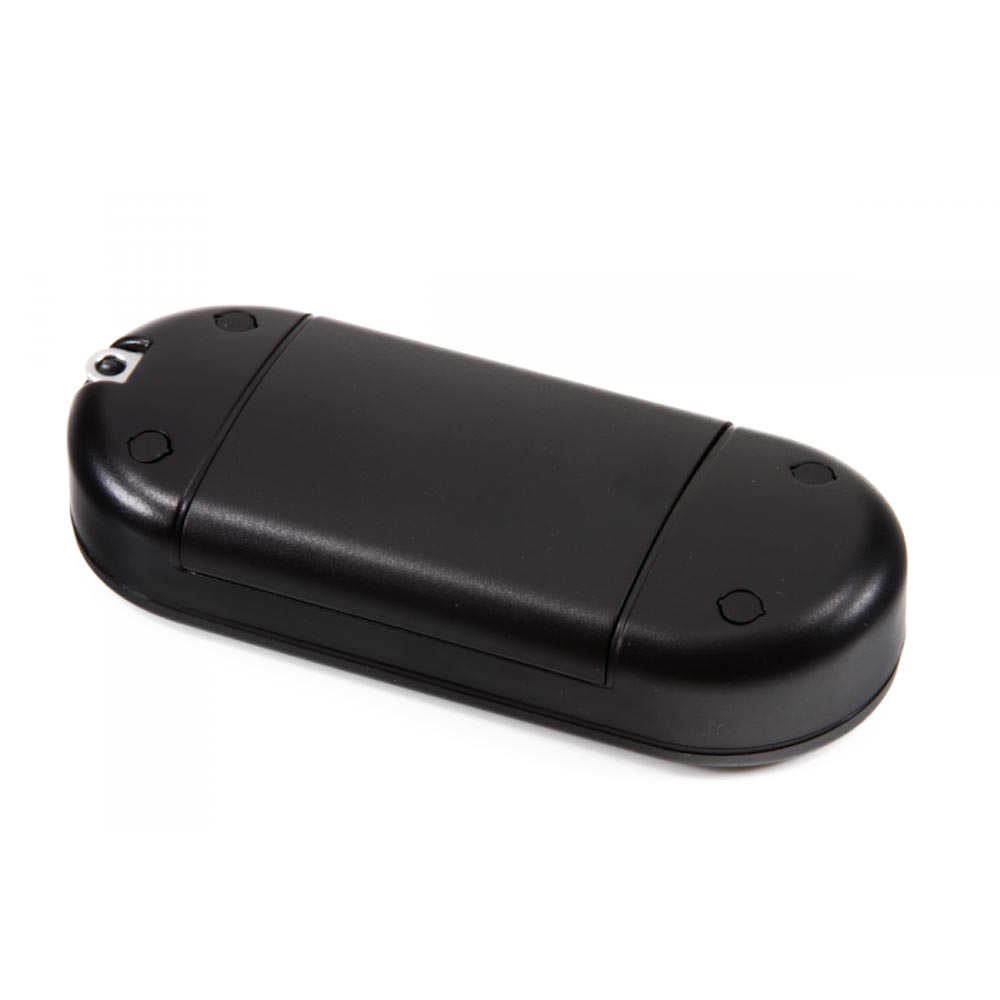

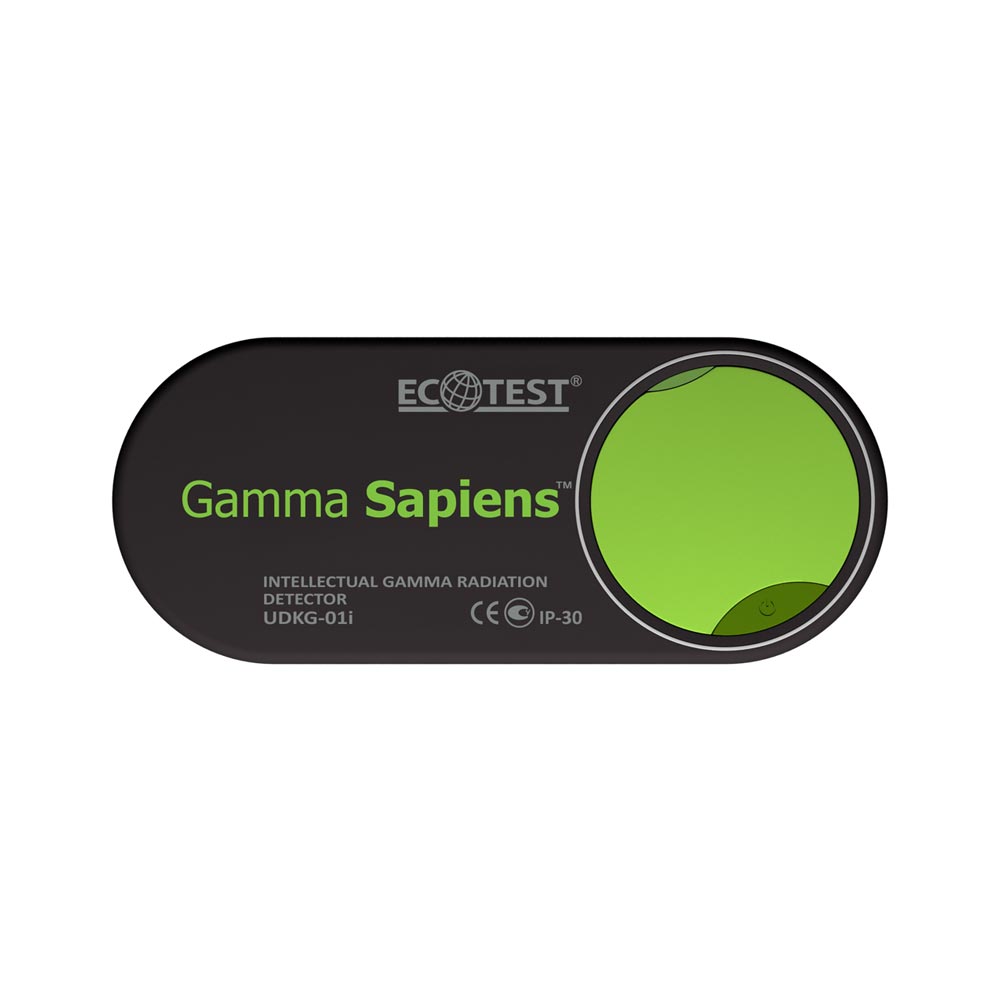

Intellectual gamma radiation detector

UDKG-PRO Gamma Sapiens

Gamma Sapiens is designed to measure radiation levels and doses.

With the help of the GS Ecotest application, the information is processed, displayed in a user-friendly form on the Android smartphone or tablet, and stored in a special database for further viewing.

Radiation is measured in real-time, it does not affect the use of a smartphone or tablet for its intended purpose. Gamma Sapiens will report a dangerous level of radiation with an audible signal and vibration. The device is self-powered, so it doesn’t use a smartphone or tablet battery.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

High dynamics and reliability of measurement results
Built-in Geiger-Muller counter of high sensitivity (it takes just 10 – 15 s to quickly evaluate normal radiation background level)
Light, audio and vibration alarm of exceeded programmed threshold levels
Transfer of dosimetric information to the smartphone/tablet in real time
LED-based alarm of connection with the smartphone/tablet
LED-based alarm of the battery discharge
Wide operating temperature range
Ingress protection rating ІР30

Purpose of Use

Measurement of ambient dose equivalent rate (DER) of gamma radiation
Measurement of ambient dose equivalent (DE) of gamma radiation
Transfer of measured values to the Android smartphone/tablet via Bluetooth

GS Ecotest application provides

Information about the radiation level and accumulated dose which is transferred from Gamma Sapiens detector to the smartphone/tablet via Bluetooth in real time
Display of measurement results in one of 4 different graphic representations
Representation of collected data on a map with GPS coordinates
Setting up one or more dose and dose rate threshold levels
Data storage in a relational database
View of stored data in a database within a certain period of time
Automatic track formation of dosimetric measurements by different user-defined criteria
Control of the detector via a smartphone or tablet
Making and receiving calls, sending and receiving messages, starting and using other applications, etc., without interrupting the process of measurement and loss of data

Delivery kit

intellectual gamma radiation detector

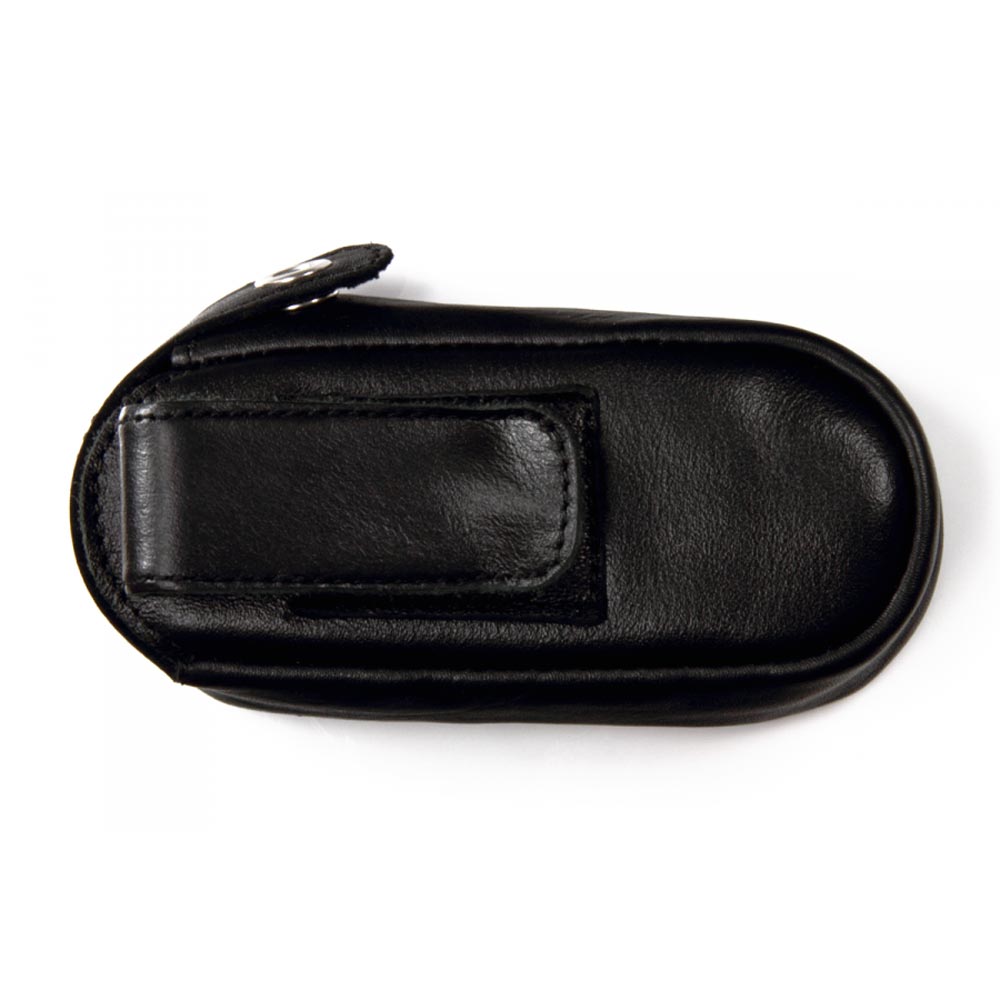

leather case
operating manual
package

Measurement range of gamma radiation DER

0.1 … 9 999 µSv/h

Main relative permissible error limit in gamma radiation DER measurement with 0.662 MeV energy, with confidence probability of 0.95 (calibrated with ¹³⁷Cs)

(15+2/Н*(10)) %, where H*(10) is a numeric value of the measured DER in µSv/h

Measurement range of gamma radiation DE

0.001 … 9 999 mSv

Main relative permissible error limit in gamma radiation DE measurement with confidence probability of 0.95

15 %

Energy range of registered gamma radiation

0.05 … 3 MeV

Energy dependence of the measurement results during gamma radiation DER and DE measurements in the energy range from 0.05 to 1.25 MeV, not more

±25 %

Complementary permissible error limit in gamma radiation DER and DE measurements caused by ambient air temperature variations from -18 to +50 °С, not more

5 % per each 10 °С deviation from +20 °С

Range of the Bluetooth interface for connection with the smartphone/tablet, not less

5 m

Time of continuous operation of the detector with a new rechargeable battery consisting of two AAA cells of up to 1 280 mAh capacity under natural radiation background conditions, not less

60 h

Operating supply voltage

3 V

Complementary permissible error limit in gamma radiation DER and DE measurements caused by supply voltage variations of the detector within 2.4 ... 3.2 V, not more

5 %

Setup time of operating mode and measurement time of the detector, not more

3 min

Operating temperature range

–18 … +50 °С

Dimensions, not more

19 × 40 × 95 mm

Weight of the detector without batteries, not more

0.05 kg
