Alpha, beta, gamma radiation radiometer-dosimeter

RKS-01 STORA-ABG

Order the Product
Got a Question?

A compact search device with a telescopic rod for quick detection and localization of alpha, beta, gamma and X-ray radiation sources.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

  • Alpha-beta-gamma-sensitive Geiger-Mueller counter with mica window
  • Energy-compensating filter, which allows to obtain a reliable energy dependence of the radiometer readings when measuring photon ionizing radiation in the energy range from 12 KeV to 3 MeV
  • Large display with luminescent backlight, which provides simultaneous display of measurement units, measurement errors, threshold level, real-time; and an analog indicator of instantaneous radiation intensity
  • Ability to perform measurements with a preset error
  • Prompt evaluation of gamma background within 10 seconds
  • Automatic subtraction of gamma radiation component when measuring beta radiation parameters
  • Automatic subtraction of gamma and beta radiation components when measuring alpha radiation parameters
  • Programming of threshold levels of the alarm system activation for each parameter of measured radiation
  • Automatic setting of measurement intervals and ranges
  • Audio signaling of each registered gamma quantum, alpha or beta particle with the possibility of its deactivation
  • Two-tone audio alarm of exceeded programmed threshold levels
  • Recording in nonvolatile memory up to 1 000 measurement results
  • Viewing the measurement results previously recorded in non-volatile memory on the indicator, as well as transferring the information to a personal computer via the wireless channel
  • Four-level indication of the battery discharge
  • New software has been developed to work with the device
  • Software is used for:
    • readout of measurement results from the dosimeter memory into the PC as a dosimeter measurement protocol
    • viewing measurement results on the PC monitor, preparing and printout of reports, saving measurement results to a file without changes or as a report for further use

Purpose of Use

  • Measurement of ambient dose equivalent rate (DER) of gamma and X-ray radiation (photon-ionizing radiation)
  • Measurement of surface beta-particles flux density
  • Measurement of surface activity of beta-emitting radionuclides
  • Measurement of surface alpha-particles flux density
  • Measurement of surface activity of alpha-emitting radionuclides
  • Indication of pulse counting speed from the detector of alpha-beta-gamma radiation

Delivery Kit

  • radiometer-dosimeter
  • cover No.1 (energy compensating filter for measurement of photon-ionizing radiation DER)
  • cover No.2 (alpha, beta filter for gamma radiation component measurement when measuring beta radiation characteristics)
  • cover No.3 (alpha filter for gamma and beta component measurement when measuring alpha radiation characteristics)
  • cover No.4 (a grid to protect the counter when measuring alpha radiation characteristics)
  • gaskets kit (30 microns – 10 pcs.)
  • telescopic rod
  • holder
  • screw (2 pcs.)
  • software
  • operating manual
  • stacking bag
  • packing case
  • package* The delivery kit may be completed upon customer’s request
Specifications
Measurement range of photon-ionizing radiation DER
0.1 … 100 000 μSv/h
Display range of photon-ionizing radiation DER
0.01 … 100 000 μSv/h
Main relative permissible error limit when measuring photon-ionizing radiation DER at 137Cs calibration with a confidence probability of 0.95
(15+2/М) %, where M is a dimensionless value that is numerically equal to the DER value measured in μSv/h
Energy range of photon-ionizing radiation being registered
0.012 … 3 МеV
Energy dependence of radiometer readings when measuring photon-ionizing radiation DER relative to 0.662 MeV (137Cs)
– in the energy range from 0.012 to 0.04 MeV, not more
±35 %
– in the energy range from 0.04 to 1.25 MeV, not more
±25 %
Measurement range of surface beta-particles flux density
5 … 999 999 part./(cm2·min)
Display range of surface beta-particles flux density
1 … 999 999 part./(cm2·min)
Measurement range of surface activity of beta-emitting radionuclides
0.22 … 9 999 Bq/cm2 for С0 source type (90Sr/90Y) (efficiency of С0 type sources is 0.377)
Display range of surface activity of beta-emitting radionuclides
0.01 … 9 999 Bq/cm2
Main relative permissible error limit when measuring surface beta-particles flux density in the range from 5 part./(cm2·min) to 999 999 part./(cm2·min) at 90Sr/90Y calibration with a confidence probability of 0.95
(20+150/F) %, where F is a dimensionless value that is numerically equal to the value of surface beta-particles flux density measured in part./(cm2·min)
Main relative permissible error limit when measuring surface activity of beta-emitting radionuclides in the range from 0.22 Bq/cm2 to 9 999 Bq/cm2 at 90Sr/90Y calibration with a confidence probability of 0.95 from С0 source type
(20+10/А) %, where А is a dimensionless value that is numerically equal to the value of surface activity of beta-emitting radionuclides measured in Bq/cm2
Energy range of beta-particles being registered
0.15 … 3 MeV
Measurement range of surface alpha-particles flux density
5 … 999 999 part./(cm2·min)
Display range of surface alpha-particles flux density
1 … 999 999 part./(cm2·min)
Measurement range of surface activity of alpha-emitting radionuclides
0.2 … 9 999 Bq/cm2 for П9 source type (239Pu) (efficiency of П9 type sources is 0.490)
Display range of surface activity of alpha-emitting radionuclides
0.01 … 9 999 Bq/cm2
Display range of pulse count rate from alpha, beta, gamma radiation counter
0.001 … 9 999 cps
Main relative permissible error limit when measuring surface alpha-particles flux density in the range from 5 part./(cm2·min) to 999 999 part./(cm2·min) at 239Pu calibration with a confidence probability of 0.95
(20+150/F) %, where F is a dimensionless value that is numerically equal to the value of surface alpha-particles flux density measured in part./(cm2·min)
Main relative permissible error limit when measuring surface activity of alpha-emitting radionuclides in the range from 0.2 Bq/cm2 to 9 999 Bq/cm2 at 239Pu calibration with a confidence probability of 0.95 from a standard П9 source type
(20+10/А) %, where A is a dimensionless value that is numerically equal to the value of surface activity of alpha-emitting radionuclides measured in Bq/cm2
Window area
13.8 сm2
Typical sensitivity to photon-ionizing radiation with an energy of 0.662 MeV (137Cs)
4.5 cps/(μSv/h)
Time of operating mode setting of the radiometer, not more
1 min
Time of continuous operation of the radiometer when powered from a new battery of two 1 200 mAh AAA galvanic cells under normal conditions and given gamma background not more than 0.5 μSv/h, disabled sounding of registered gamma quanta and disabled backlight of the scale, not less
2 000 h
Operating supply voltage
3 V
Additional relative permissible error limit when measuring photon-ionizing radiation DER, surface beta-particles flux density and surface alpha-particles flux density in the range of supply voltage from 2.4 V to 3.2 V
±5 %
Additional relative permissible error limit when measuring photon-ionizing radiation DER, surface beta-particles flux density and surface alpha-particles flux density caused by changes in the environmental temperature from -20 °С to +50 °С
± 0.5 % per each 1 °С of deviation from 20 °С
Operating temperature range
-20 … +50 °С
Overall dimensions of the radiometer, not less
160 × 75 × 37 mm
Length of the folded telescopic rod
43 cm
Length of the unfolded telescopic rod
143 cm
Weight of a telescopic rod
0.42 kg
Weight of the radiometer without a telescopic rod, not more
0.4 kg
Weight of the radiometer in package, not more
4.2 kg (case – 3.2 kg)
Support
Operating Manual
CE Declaration of Conformity

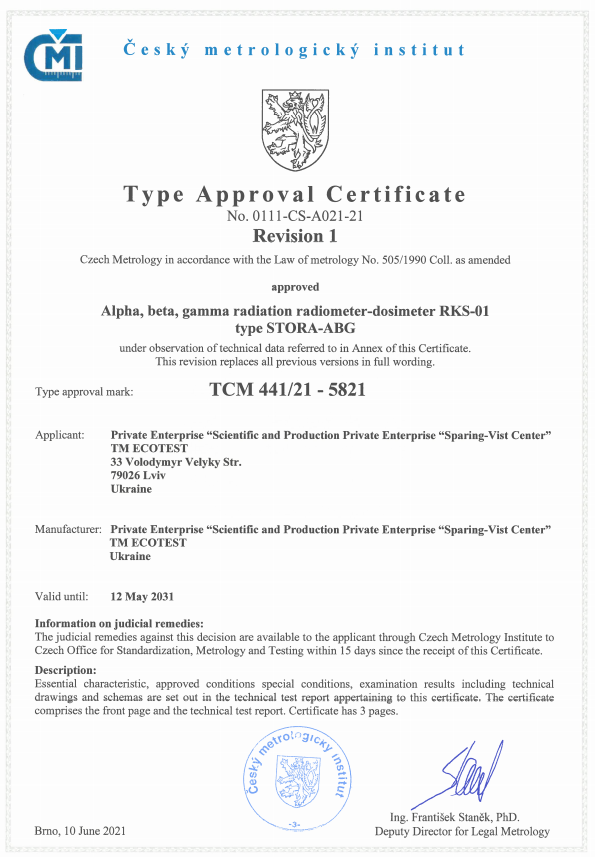

Type Approval Certificate
