PRD CADMIUM

PRD CADMIUM

Search Alarm Dosimeter DKS-02PN

  • Highly-sensitive and compact PRD
  • Integrated GPS receiver
  • Damp and dustproof body IP67
  • Complies with ANSI 42.32 & 42.33 standards
Order Got a question?

    Feedback

    [recaptcha]
    • Description
    • Description
    • Description
    • Description
    • Description
    • Description

    Description

    High sensitivity device intended to detect and localize radioactive and nuclear materials by their external gamma and neutron radiation. It is widely used to prevent the illicit transfer of radioactive materials.

    Upon customer’s request, we can produce CADMIUM in only gamma version (without a neutron channel).

    Video Guide

    Purpose of Use

    • Search (detect and localize) for radioactive and nuclear materials by their external gamma and neutron radiation

    • Measurement of ambient dose equivalent rate (DER) of gamma and X-ray radiation (photon-ionizing radiation)

    • Indication of ambient dose equivalent rate (DER) of neutron radiation

    • Measurement of ambient dose equivalent (DE) of gamma and X-ray radiation

    • Determination of gamma, X-ray and neutron radiation intensity

    Features

    • High sensitivity CsI(Tl) scintillation detectors of gamma and LiI(Eu) of neutron radiation with solid-state (silicon) photomultiplier

    • Color display with high resolution

    • No “microphone effect”

    • High thermal stability

    • Audio and vibration alarm of threshold levels exceeding

    • Threshold alarm system with four independent threshold levels:

      – search threshold level (threshold level of count rate from the detector photon and neutron ionizing radiation)

      – safety threshold level (threshold level of photon ionizing radiation DER)

      – accumulated dose threshold level

    • Light color alarm (indication) of threshold levels exceeding (gamma radiation – red color, neutron – blue) and visual alarm on the side of the device

    • Dosimeter communicates with a PC via USB port

    • Powered by built-in lithium polymer storage battery that can be charged via USB cable

    • Software is used for:

      – reading measurement results and critical events from the dosimeter memory into the PC

      – report preparation and printout

      – display of the obtained dosimetric information with the GPS coordinates on the area map



    Specifications

    • Photon-ionizing radiation sensitivity of (137Cs) CsI(Tl) scintillation detector
    • Upon customer’s request the sensitivity can be changed to a value of no less
    • 200 cps/(µSv/h)
    • 450 cps/(µSv/h)



    Neutron radiation sensitivity while using the LiI(Eu) scintillation detector

    • – for thermal neutrons, no less
    • – for fast neutrons, no less
    • 1.2 ± 0.12 pulse·cm2/n
    • 0.12 ± 0.012 pulse·cm2/n
    Total measurement and display range of photon-ionizing DER- from built-in scintillation detecting unit of photon-ionizing radiation- from built-in Geiger-Muller counter
    • 0.01…106 μSv/h
    • 0.01 … 50 μSv/h
    • 50 … 106 μSv/h
    Measurement and display range of photon-ionizing DE from the Geiger-Muller counter 0.1 … 9.9·106 μSv
    Display range of neutron radiation DER 0.01 … 104 μSv/h
    Display range of pulse count rate of photon-ionizing radiation 1 … 25 000 cps
    Display range of pulse count rate of neutron radiation from the scintillation neutron detecting unit 0.01 … 25 000 cps
    Main relative permissible error limit when measuring photon-ionizing radiation DER from the scintillation detecting unit of photon-ionizing radiation at 0.95 confidence probability (137Cs) (15+1/H*(10)) %, where H*(10) is a numeric value of measured DER in μSv/h
    Main relative permissible error limit when measuring photon-ionizing radiation DER and DE from the Geiger-Muller counter at 0.95 confidence probability (137Cs) 15 %
    Energy range of registered photon-ionizing radiation 0.02 … 3 MeV
    Energy dependence of the device’s readings when measuring photon-ionizing radiation DER and DE in the energy range from 0.05 MeV to 3 MeV relative to 0.662 MeV energy (137Cs) ± 25 %
    Energy range of registered neutron radiation 2.5·10-8 … 14 MeV
    Set-up time of the device operation, not more 1 min
    Calibration time by the level of gamma background 2 … 90 s
    Response time to over 10 times change of photon-ionizing radiation DER 0.25 s
    Operating supply voltage 3.7 V
    • Time of continuous operation of the device when powered from the charged lithium-polymer battery under background of gamma radiation no more than 0.5 μSv/h
    • – a switched-off display backlight, with no alarm triggering and a switched-off GPS receiver, no less
    • – a switched-off display backlight, with no alarm triggering and a switched-on GPS receiver, no less
    • 200 h
    • 55 h
    Operating temperature range – 20 … + 50 °С
    Dimensions of the device with no clip (the clip included), no more 67 × 128 × 30 (45) mm
    Weight of the device, no more 0.28 kg
    Download operating manual

    Certificates

    • Certificate of Type Examination UA-TR.113-0297-19 dd. January 28, 2019

    • Certificate of Conformity of Measuring Instruments with Approved Type No. UA-TR.113-0297-19 dd. January 28, 2019

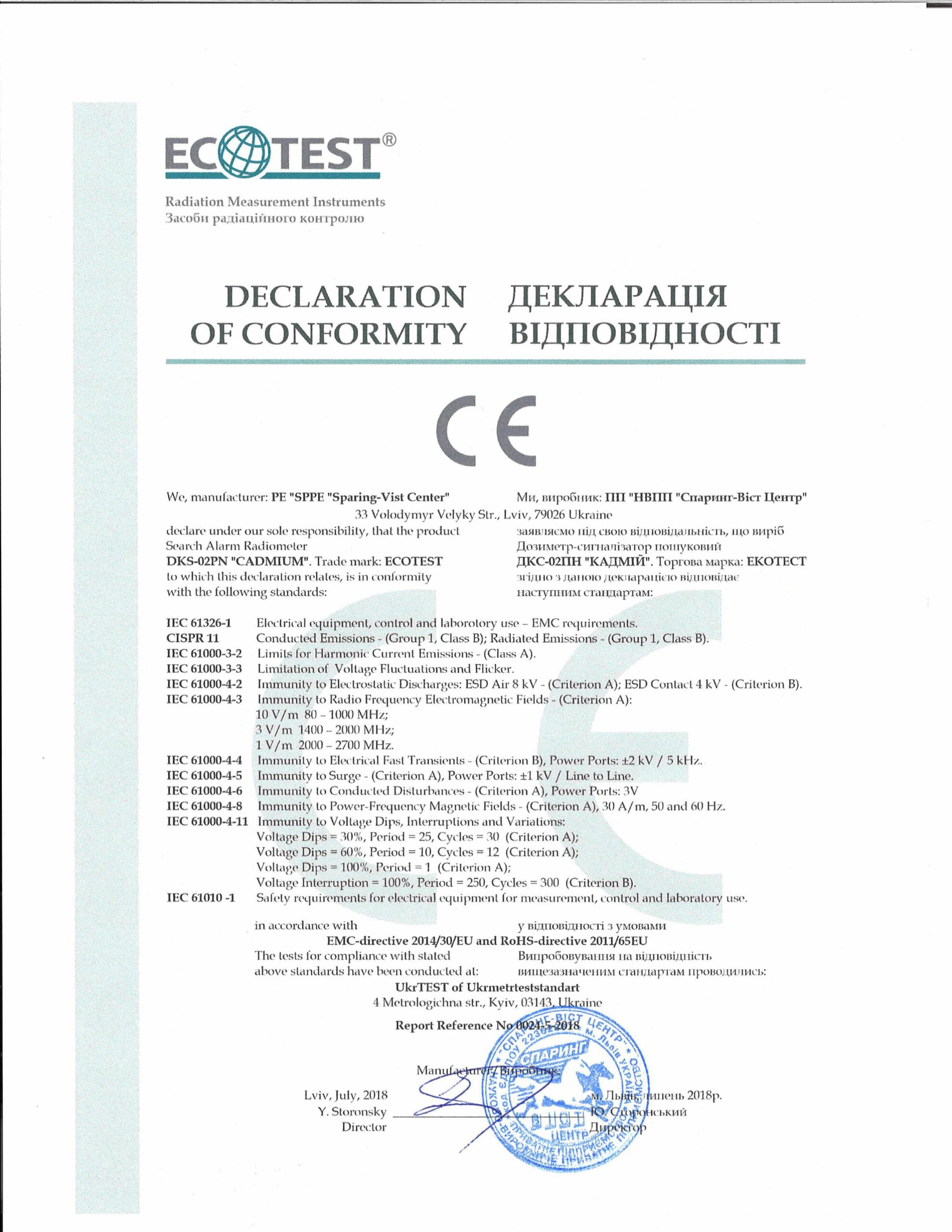

    • Declaration of conformity with the CE standards.

    Certificate of Type Examination

    Learn more about the Certificate here

    Delivery Kit

    • search alarm dosimeter
    • charger
    • shielded USB cable
    • software
    • operating manual
    • packing case
