Multipurpose Dosimeter-Radiometer

  • NATO Stock Number (NSN) 6665 12 408 7282 (for the model SVGps)
  • Measurement of alpha, beta, gamma and X-ray radiation
  • Solar panel, integrated GPS receiver
  • Wide operating temperature range from minus 30 °C to + 55 °C
  • Display temperature resistance + 95 °C

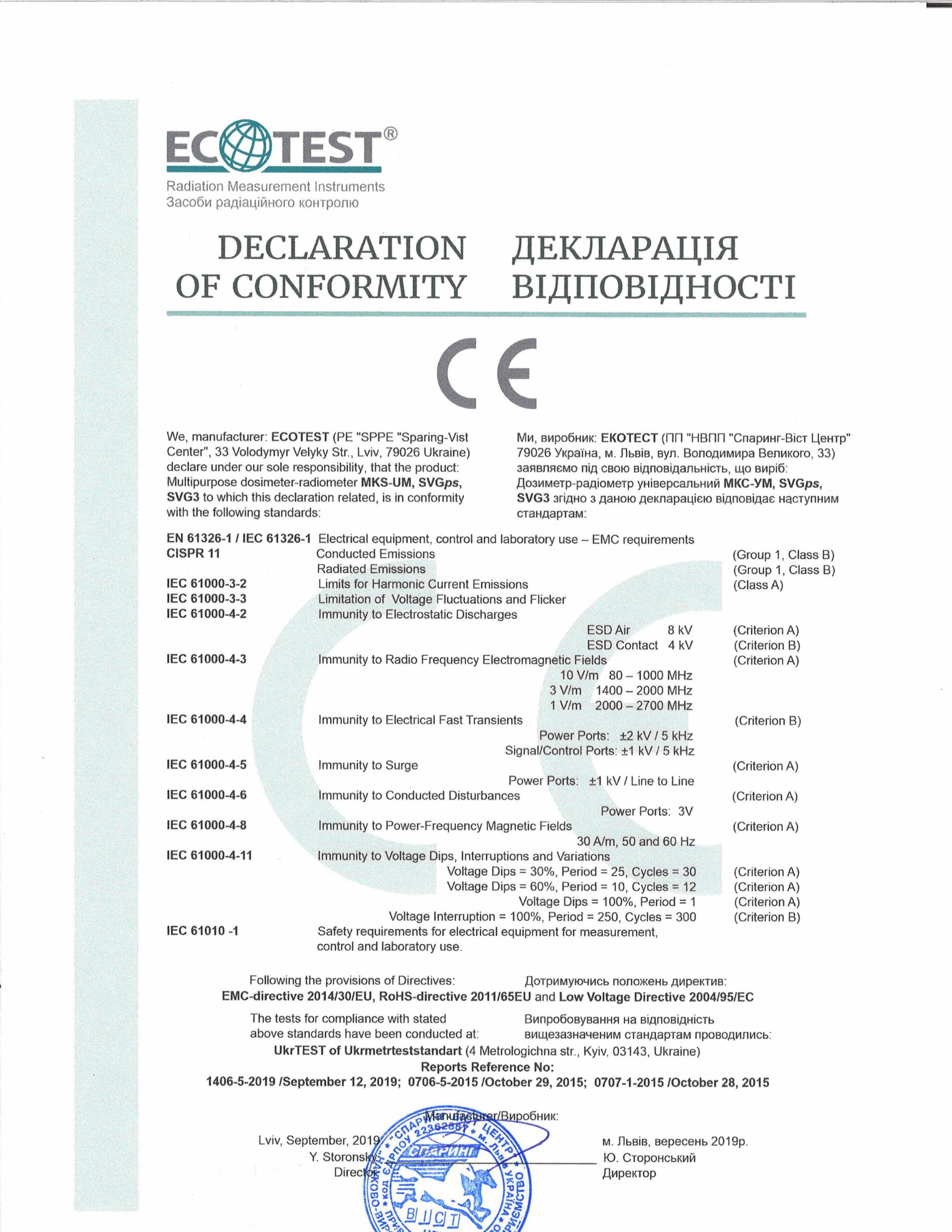

  • Complies with MIL-STD-810G, MIL-STD-461F standards
  • Complies with ІЕС 60846, ІЕС 60325 standards
Order Got a question?

    Feedback

    [recaptcha]
    • Description
    • Description
    • Description
    • Description
    • Description
    • Description
    • Description

    Description

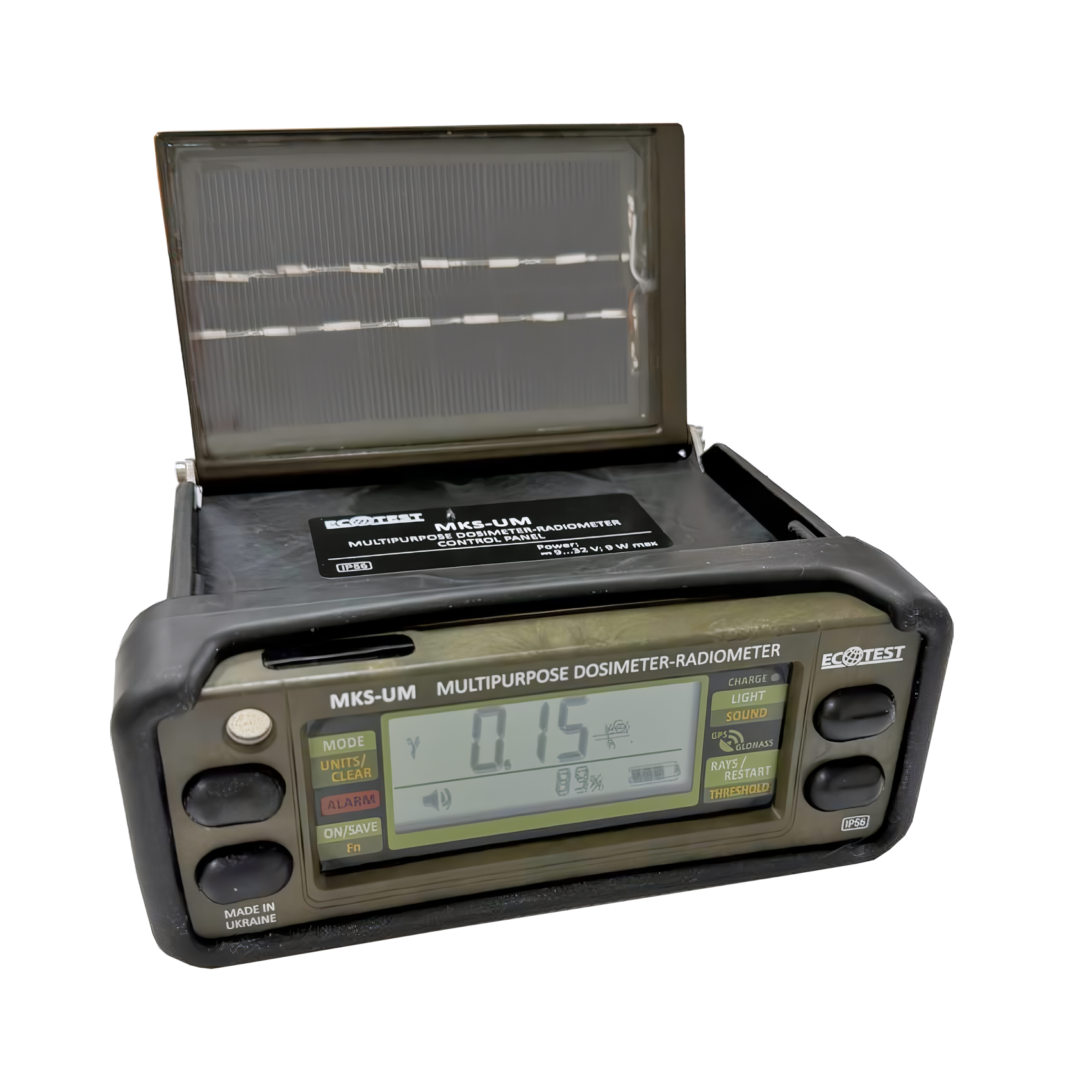

    MKS-UM is a full-range radiation survey device in the field environment, which measures alpha, beta, gamma and X-ray radiation. The gamma radiation dose rate is measured from the background to emergency levels. High protection rating and a hard shell allow using the device in harsh climatic and dusty conditions.

    Video guide

    Purpose of Use

    • Measurement of ambient dose equivalent rate (DER) of gamma and X-ray radiation

    • Measurement of ambient dose equivalent (DE) of gamma and X-ray radiation

    • Measurement of beta-particles surface flux density and beta-particles surface activity

    • Measurement of alpha-particles surface flux density and alpha-particles surface activity

    • Measurement of accumulation time of gamma and X-ray radiation DE

    • Archive of measurement results tagged to location coordinates

    Features

    • Gas-discharge Geiger-Muller counters without return run of counting response

    • Silicon beta radiation detector

    • Possibility to measure ambient dose equivalent rate (DER) of gamma radiation with the detector which is built in the control unit

    • Automatic selection between measurement intervals and ranges

    • Audio signaling of each registered gamma-quantum or beta particle

    • Backlight of display and control buttons for operation in the dark

    • Rechargeable Li-lon battery charging by the built-in charger from:

      – solar panel

      – 12 V automobile battery

      – industrial network 220 V/50 Hz

    • Multilevel indication of battery discharge

    • Analog indicator of radiation intensity

    • IP56 of control unit and IP57 of detecting units

    • Logging of up to 1 500 measurement results tagged to location coordinates in the non-volatile memory via USB/IrDA adapter to the PC (built-in GPS receiver)

    • Viewing of logged measurement results on the display

    • Easy to operate even if wearing personal protection – rubber gloves

    Specifications

    Specifications of the control unit of the MKS-UM dosimeter-radiometer
    Measurement range of photon-ionizing radiation DER 10-1 … 106 μSv/h
    Indication range of pulse count rate from gamma radiation detector 0 … 9 999 cps
    Measurement range of photon-ionizing radiation DE 0.001 … 9 999 mSv
    Main relative permissible error limit during DER measurement at 137Cs calibration with 0.95 confidence probability (15+2/H*(10)) %, where H*(10) is a dimensionless quantity, numerically equal to DER value measured in μSv/h
    Main relative permissible error limit during DE measurement at 137Cs calibration with 0.95 confidence probability 15 %
    Energy range of recorded photon-ionizing radiation 0.05 … 3 MeV
    Energy dependence during photon-ionizing radiation DER and DE measurement in the energy range from 0.05 MeV to 1.25 MeV, relative to 0.662 MeV energy, not more ± 30 %
    Measurement range of DE accumulation time 1 min … 9 999 hrs
    Accuracy of DE accumulation time measurement for 24 hrs ± 1 min
    Operating supply voltage of the dosimeter from Li-Ion storage battery (4 000 mAh) 3.7 V
    Additional relative permissible error limit during measurement caused by supply voltage deviation from the reference value in the voltage range from 3.4 V to 4.2 V, for all measured physical quantities, not more 5 %
    Additional relative permissible error limit during measurement caused by deviation of environmental temperature from 20 ос in the temperature variation range from minus 30 оС to + 55 оС 5 % per each 10 оС deviation from 20 оС
    Operating mode setup time while the control unit is exposed to photon-ionizing radiation with DER equal to 5 µSv/h, not more 5 min
    • Time of continuous operation of the dosimeter powered from a fully charged, Li-Ion battery of 4 000 mAh capacity under normal climatic conditions
    • – at gamma background up to 0.5 µSv/h when ABG/BG probes are disconnected and the display backlight and GPS-receiver are switched off, not less
    • – at gamma background up to 0.5 µSv/h when ABG/BG probes are disconnected, the display backlight and GPS-receiver are switched on, not less
    • – when ABG or BG probe is connected in the mode of any radiation type measurement, the display backlight and GPS-receiver are switched off, not less
    • – when ABG or BG probe is connected in the mode of any radiation type measurement, the display backlight and GPS-receiver are switched on, not less
    1 200 hrs

    70 hrs

    300 hrs

    50 hrs

    Unstable readings of the dosimeter during DER measurement for an 8-hour continuous operation, not more 5 %
    Dimensions of the control unit (in hard shell with solar panel), not more 166 × 70 × 132 mm
    Weight of the control unit, not more 0.75 kg
    Weight of the control unit (in hard shell with solar panel), not more 1.3 kg
    Specifications of the BDKS-01 combined detecting unit of gamma, beta radiation (BG Probe)
    Measurement range of photon-ionizing radiation DER 10-1 … 107 μSv/h
    Indication range of pulse count rate from gamma radiation detector 0 … 9 999 cps
    Main relative permissible error limit during photon-ionizing radiation DER measurement at 137Cs calibration with 0.95 confidence probability (15+2/H*(10)) %, where H*(10) is a dimensionless quantity, numerically equal to DER value measured in μSv/h
    Energy range of recorded photon-ionizing radiation 0.05 … 3 MeV
    Additional relative permissible error limit during measurement of photon-ionizing radiation DER caused by deviation of environmental temperature from 20 оС in the temperature variation range from minus 30 оС to + 55 оС 5 % per each 10 оС deviation from 20 оС
    Operating mode setup time while the BG probe is exposed to photon-ionizing radiation with DER equal to 5 µSv/h, not more 1 min
    Operating mode setup time when measuring surface beta-particles flux density and surface activity of beta-emitting radionuclides, not more 1 min
    Measurement range of surface beta-particles flux density 10 … 200 000 part./(cm²·min)
    Measurement range of surface activity of beta-emitting radionuclides 0.5 … 9 000 Bq/cm² for С0 source type (90Sr/90Y)(efficiency of C0 type sources is 0.377)
    Indication range of pulse count rate from beta radiation detector 0 … 9 999 cps
    Energy range of recorded beta radiation 0.3 … 3 MeV
    Main relative permissible error limit during measurement of surface beta-particles flux density in the range from 10 part./(cm²·min) to 200 000 part./(cm²·min) at 90Sr/90Y calibration with 0.95 confidence probability (20+200/Fβ) %, where Fβ is a dimensionless quantity, numerically equal to surface beta-particles flux density value measured in part./(cm²·min)
    Main relative permissible error limit during measurement of surface activity of beta-emitting radionuclides in the range from 0.5 Bq/cm² to 9 000 Bq/cm² at 90Sr/90Y calibration with 0.95 confidence probability from С0 type source (20+10/Аβ) %, where Аβ is a dimensionless quantity, numerically equal to surface activity of beta-emitting radionuclides value measured in Bq/cm²
    Area of the detector’s sensitivity 1 cm²
    • Beta-particles recording efficiency, not less
    • – for 14С isotope
    • – for 204Tl isotope
    • – for 90Sr/90Y isotope
    • 0.25
    Additional relative permissible error limit during measurement of surface beta-particles flux density and surface activity of beta-emitting radionuclides caused by variation of environmental temperature from minus 30 оС to + 55 оС 5 % per each 10 оС of deviation from 20 оС
    Unstable readings during measurement of all physical quantities for an 8-hour continuous operation, not more 5 %
    Dimensions of the BG probe, not more d 47 × 96 × 176 mm
    Weight of the BG probe, not more 0.3 kg
    Specifications of the BDKS-02 combined detecting unit of alpha, beta, gamma radiation (ABG Probe)
    Measurement range of photon-ionizing radiation DER 10-1 … 2·106 μSv/h
    Indication range of pulse count rate from photon-ionizing radiation detector 0 … 9 999 cps
    Main relative permissible error limit during measurement of photon-ionizing radiation DER at 137Cs calibration with 0.95 confidence probability (15+2/H*(10)) %, where H*(10) is a dimensionless quantity, numerically equal to DER value measured in μSv/h
    Energy range of detected photon-ionizing radiation 0.05 … 3 MeV
    Additional relative permissible error limit during measurement of photon-ionizing radiation DER caused by deviation of environmental temperature from 20 оС in the temperature variation range from minus 30 оС to + 55 оС 5 % per each 10 оС of deviation from 20 оС
    Setup time of operating mode while the ABG Probe is exposed to photon-ionizing radiation with DER equal to 5 µSv/h, not more 1 min
    Setup time of operating mode when measuring beta-particles flux density and surface activity of beta-emitting radionuclides, not more 1 min
    Measurement range of surface beta-particles flux density 10 … 300 000 part./(cm²·min)
    Measurement range of surface activity of beta-emitting radionuclides 0.5 … 13 500 Bq/cm²for С0 source type (90Sr/90Y)(efficiency of C0 type sources is 0.377)
    Indication range of pulse count rate from beta radiation detector 0 … 9 999 cps
    Energy range of detected beta-particles 0.15 … 3 MeV
    Main relative permissible error limit during measurement of surface beta-particles flux density in the range from 10 to 300 000 part./(cm²·min) at 90Sr/90Y calibration with 0.95 confidence probability (20+200/Fβ) %, where Fβ is a dimensionless quantity, numerically equal to surface beta-particles flux density value measured in part./(cm²·min)
    Main relative permissible error limit during measurement of surface activity of beta-emitting radionuclides in the range from 0.5 to 13 500 Bq/cm² at 90Sr/90Y calibration with 0.95 confidence probability from standard source of С0 type (20+10/Аβ) %, where Аβ is dimensionless quantity, numerically equal to surface activity of beta-emitting radionuclides value measured in Bq/cm²
    Area of the detector’s sensitivity 7 cm²
    • Beta-particles detection efficiency, not less
    • – for 14С isotope
    • – for 204Tl isotope
    • – for 90Sr/90Y isotope
    • 0.4
    Additional relative permissible error limit during measurement of surface beta-particles flux density and surface activity of beta-emitting radionuclides caused by variation of environmental temperature from minus 30 оС to + 55 оС ± 5 % per each 10 оС of deviation from 20 оС
    Measurement range of surface alpha-particles flux density 10 … 300 000 part./(cm²·min)
    Measurement range of surface activity of alpha-emitting radionuclides 0.5 … 10 000 Bq/cm²for П9 source type (239Pu)(efficiency of П9 type sources is 0.490)
    Energy range of detected alpha-particles 4 … 8 MeV
    Indication range of pulse count rate from alpha radiation detector 0 … 9 999 cps
    Main relative permissible error limit during measurement of surface alpha-particles flux density in the range from 10 to 300 000 part./(cm²·min) at 239Pu calibration with 0.95 confidence probability (15+300/Fα) %, where Fα is a dimensionless quantity, numerically equal to surface alpha-particles flux density value measured in part./(cm²·min)
    Main relative permissible error limit during measurement of surface activity of alpha-emitting radionuclides in the range from 0.5 to 10 000 Bq/cm2 at 239Pu calibration with 0.95 confidence probability from standard source of П9 type (15+15/Аα) %, where Аα is a dimensionless quantity, numerically equal to surface activity of alpha-emitting radionuclides value measured in Bq/cm²
    Area of the detector’s sensitivity 7 cm²
    Alpha-particles detection efficiency from 239Pu isotope, not less 0.06
    Additional relative permissible error limit during measurement of surface alpha-particles flux density and surface activity of alpha-emitting radionuclides caused by variation of environmental temperature from minus 30 оС to + 55 оС 5 % per each 10 оС of deviation from 20 оС
    Setup time of operating mode when measuring alpha-particles flux density and surface activity of alpha-emitting radionuclides, not more 1 min
    Unstable readings during measurement of all physical quantities during an 8-hour continuous operation, not more 5 %
    Dimensions of the ABG probe, not more 72 × 186 × 53 mm
    Weight of the ABG probe, not more 0.7 kg
    Download operating manual

    Delivery Kit

    • control unit
    • BDKS-01 combined detecting unit of gamma, beta radiation (BG probe)
    • BDKS-02 combined detecting unit of alpha, beta, gamma radiation (ABG probe)
    • earpiece
    • cable
    • spare parts set
    • tools and accessories (hoop, 2 carrying straps, telescopic tube armrest, telescopic tube, carrying case, USB/IrDA adapter, solar panel, power cable DC, hard shell, screwdriver, power supply unit with AC cord)
    • set of operational documents (operating manual, logbook, software and USB/IrDA drives on CD-R mini)
    • package

    THE DELIVERY KIT MAY BE COMPLETED UPON CUSTOMER’S REQUEST
