TERRA

TERRA

Dosimeter-radiometer МКS-05

  • Top product of ECOTEST trademark
  • NATO Stock Number (NSN) 6665 61 000 0177

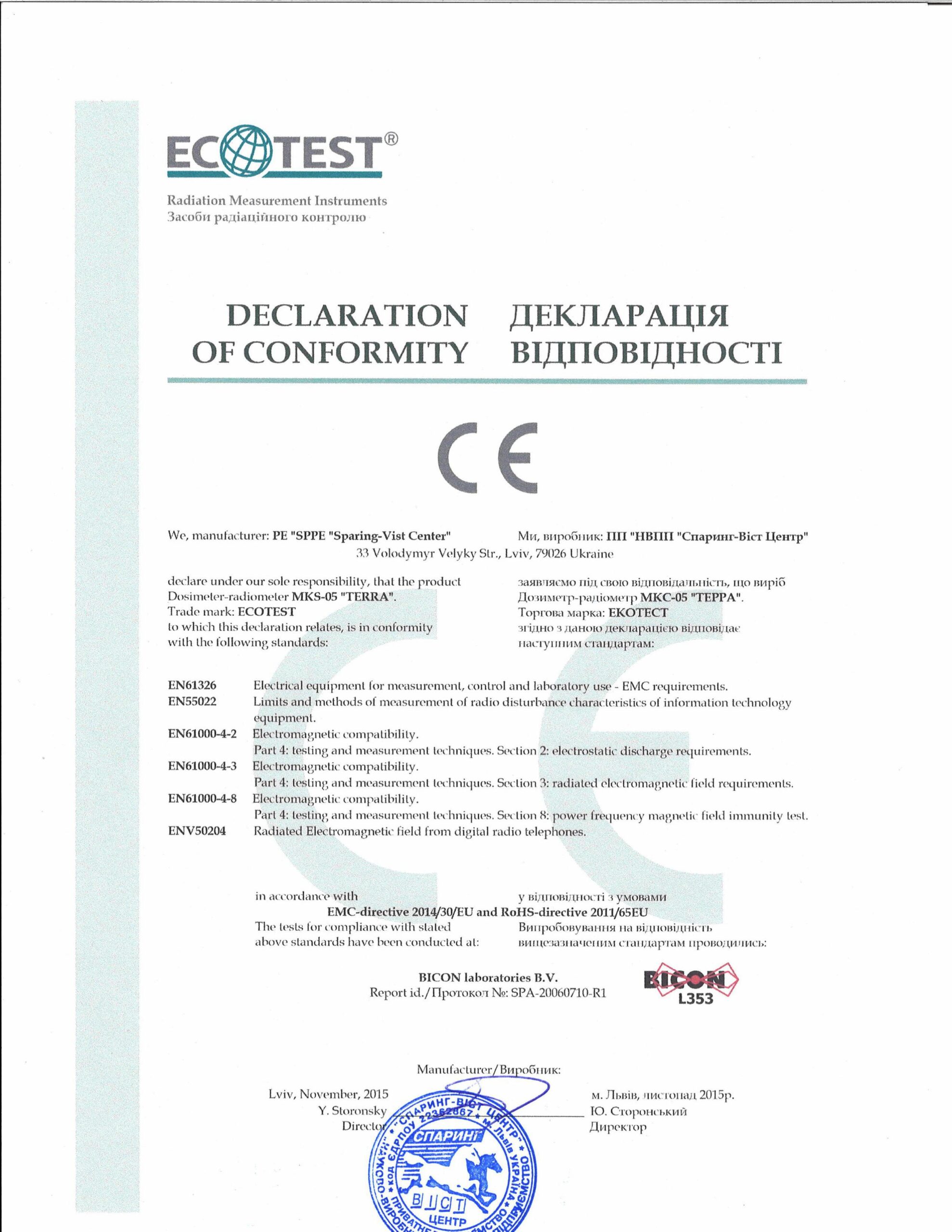

  • Complies with CE standards
Order Got a question?

    Feedback

    [recaptcha]

    Description

    TERRA is a professional device for official measurements, which measures the level of gamma background, beta contamination, accumulated dose, and its accumulation time.
    TERRA is exported to over 70 countries. The device is in operation in many Governmental Institutions and Agencies worldwide.

    TERRA designed exactly for your needs if you:

    • want to be sure of your radiation safety
    • take care of your family
    • are aware of possible radiation risks
    • have a healthy diet
    • own real estate or have projects under construction
    • prefer active leisure time (tourism, hunting, fishing, skiing, etc.)
    • like travelling
    • use cash
    • want to choose a useful and original gift for the loved ones
    • live your best life
    • want to be a professional in all areas

    Purpose of Use

    • Measurement of ambient dose equivalent rate (DER) of gamma and X-ray radiation (photon-ionizing radiation)

    • Measurement of ambient dose equivalent (DE) of gamma and X- ray radiation

    • Measurement of surface beta-particles flux density

    • Measurement of ambient dose equivalent accumulation time

    Features

    • Big display with luminescent backlight

    • Simultaneous indication of units of measurement, measurement errors, threshold level, and real-time on the display

    • Analog ten-segment indicator of registered radiation intensity

    • Ability to perform measurements with a preset error

    • Four-level indication of battery discharge

    • Built-in memory which allows storing up to 1200 measurements

    • Five independent measuring channels with the alternate indication of data on the single liquid crystal display

    • Built-in gamma, beta-sensitive Geiger-Muller counter

    • Prompt evaluation of gamma background within 10 seconds

    • Automatic subtraction of gamma background at measurement of beta contamination

    • Measurement results averaging, manually and automatically interrupted

    • Automatic setting of measurement intervals and ranges

    • Audio, vibration, and vibration-audio alarm of each detected gamma-quantum or beta-particle that can be switched off

    • Two-tone audio, vibration, and vibration-audio alarm of exceeded programmed threshold levels

    • Clock and alarm clock

    Specifications

    Measurement range of photon-ionizing radiation DER 0.1 … 9 999 µSv/h
    Main relative permissible error limit of photon-ionizing radiation DER measurement with confidence probability of 0.95 (15+2/H*(10)) %, where H*(10) is a numeric value of the measured DER in μSv/h
    Measurement range of photon-ionizing radiation DE 0.001 … 9 999 mSv
    Main relative permissible error limit of photon-ionizing radiation DE measurement with confidence probability of 0.95 ± 15 %
    Energy range of registered photon-ionizing radiation 0.05 … 3 MeV
    Energy dependence when measuring gamma radiation DER and DE relative to 0.662 MeV energy (137Cs) in the energy range from 0.05 to 1.25 MeV, not more ± 25 %
    Measurement range of surface beta-particles flux density 10 … 100 000 part./(cm²·min)
    Main relative permissible error limit of beta-particles flux density measurement with confidence probability of 0.95 (20+200/φβ) %, where φβ is a numeric value of the measured surface flux density in part./(cm²·min)
    Energy range of registered beta-particles 0.5 … 3 MeV
    Measurement range of DE accumulation time 9 999 h
    • Resolution of DE accumulation time display in the range
    • of 0 h to 100 h
    • of 100 h to 9 999 h
    • 1 min
    • 1 h
    Absolute permissible error limit at DE accumulation time measurement during 24 h ± 1 min
    Time of the dosimeter operating mode setting, not more 1 min
    Battery life (AAAx2 of 1 280 mAh capacity) under + 20 °С temperature, natural background radiation and switched off display backlight, not more 2 000 h
    Operating supply voltage 3 V
    Operating temperature range – 20 … + 50 °С
    Dimensions, not more 55 × 26 × 120 mm
    Weight, not more 0.2 kg
    Download operating manual

    Delivery kit

    • dosimeter-radiometer
    • leather case
    • operating manual
    • package
