Dosimeter-Radiometer МКS-05

  • Сonforms to the CE standards
  • Number U1524-07 in State Register for Measuring Instruments
  • Hygienic conclusion of the State Sanitary-Hygienic Expertise # 5.10/6300 of February 20, 2002
  • State Sanitary-Epidemiological Conclusion for use in educational establishments # 05.03.02-04/20545 of April 09, 2009
  • ТУ У 33.2-22362867-006-2001
  • ТУ У 33.2-22362867-006-01-2003 (military accepted)
Order Got a question? Start online survey now!

Feedback

Please leave this field empty.
Please leave this field empty.
688TERRA with Bluetooth channel

TERRA

More


  • Description
  • Description
  • Description

Description

A top famous product of “ECOTEST” trademark, which is exported to over 70 countries. This is a professional device for official measurements, which measures the level of gamma background, beta contamination, accumulated dose and its accumulation time. Prompt evaluation of gamma background is performed within 10 seconds. With the help of GS Ecotest application measurement results are transferred to smartphones and tablets running Android™ OS via Bluetooth channel in real time. The GS Ecotest application is available on Google Play. More

Measurement results can also be transferred to a personal computer.

TERRA has a large display with luminescent backlight, which simultaneously indicates units of measurement, measurement error, threshold level and real time, as well as ten-segment analog indicator of registered radiation intensity. The dosimeter has a built-in memory for 1200 measurements. Sound, vibration and sound-vibration alarms are provided for convenience of use.

The device is in operational service with the Ukrainian Army, it is included in the equipment list of the State Emergency Service of Ukraine, and used for the purposes of the Security Service of Ukraine, Ministry of Internal Affairs of Ukraine, and the State Border Guard Service of Ukraine. TERRA is also supplied to the Army and the Ministry of Emergency Situations of Kazakhstan.

Since 2002 according to the international technical assistance programs TERRA devices have been supplied to the Border Guard Service of Ukraine, Internal Troops of the Ministry of Internal Affairs of Ukraine, the State Emergency Service of Ukraine, the Border Services of Kazakhstan and Uzbekistan.

Purpose of Use

Purpose of Use

  • Measurement of gamma and X-ray radiation ambient dose equivalent rate (DER)

  • Measurement of gamma and X-ray radiation ambient dose equivalent (DE)

  • Measurement of surface beta-particles flux density

  • Measurement of ambient dose equivalent accumulation time

  • Real time measurement (clock), alarm clock

Features

  • Big display with luminescent backlight.

  • Simultaneous indication of units of measurement, measurement errors, threshold level and real time on the display.

  • Analog ten-segment indicator of registered radiation intensity.

  • Ability to perform measurements with a preset error.

  • Four-level indication of battery discharge.

  • Built-in memory which allows storing up to 1200 measurements.

  • Mode of PC connection via Bluetooth.

  • Five independent measuring channels with alternate indication of data on the single liquid crystal display.

  • Built-in gamma, beta sensitive Geiger-Muller counter.

  • Prompt evaluation of gamma background within 10 seconds.

  • Automatic subtraction of gamma background at measurement of beta contamination.

  • Measurement results averaging, manually and automatically interrupted.

  • Automatic setting of measurement intervals and ranges.

  • Audio, vibration and vibration-audio alarm of each detected gamma-quantum or beta-particle that can be switched off.

  • Two-tone audio, vibration and vibration-audio alarm of exceeded programmed threshold levels.

  • Two AAA batteries.

  • Shock-resistant body.

  • Small weight and dimension parameters.

Specifications

Measurement ranges and main relative errors:
Gamma and X-ray radiation ambient dose equivalent rate (137Cs) µSv/h 0.1…9 999;
% ±(15+2/H*(10)), where  H*(10) is a numeric value of measured DER equivalent to µSv/h
Gamma and X-ray radiation ambient dose equivalent (137Cs) mSv 0.001…9 999;
±15%
Beta-particles flux density (90Sr+90Y) 1/(cm²×min) 10…100 000;
% ±(20+200/φβ), where φβ is a numeric value of measured beta-particles flux density equivalent to part./(cm²×min)
Ambient dose equivalent accumulation time and accuracy of measurement 1 min…9 999 h; ±0.1 s per 24 h
Energy ranges of measurement and energy dependence:
Gamma and X-ray radiation MeV 0.05…3.0; ±25%
Beta radiation MeV 0.5…3.0
Resolution of threshold level programming for:

  • – dose rate
  • – dose
  • – flux density
µSv/h
mSv
10³/(cm²×min)
0.01
0.001
0.01
Battery life* hours 1 500
Operating temperature range °С -20…+50
Weight kg 0.2
Dimensions mm 120×52×26

А description of communications protocol with the PC can be downloaded here.




Download operating manual

Certificates

  • Pattern Approval Certificate of Measuring Instruments # UA-MI/1-1108-2007 of December 12, 2007 (У1524-07 number in the State Register for Measuring Instruments)

  • Conformance Certificate of Measuring Instruments with the Approved Pattern # UA-MI/2-4503-2014 of August 18, 2014

  • Hygienic conclusion of the State Sanitary-Hygienic Expertise № 5.10/6300 of February 20, 2002

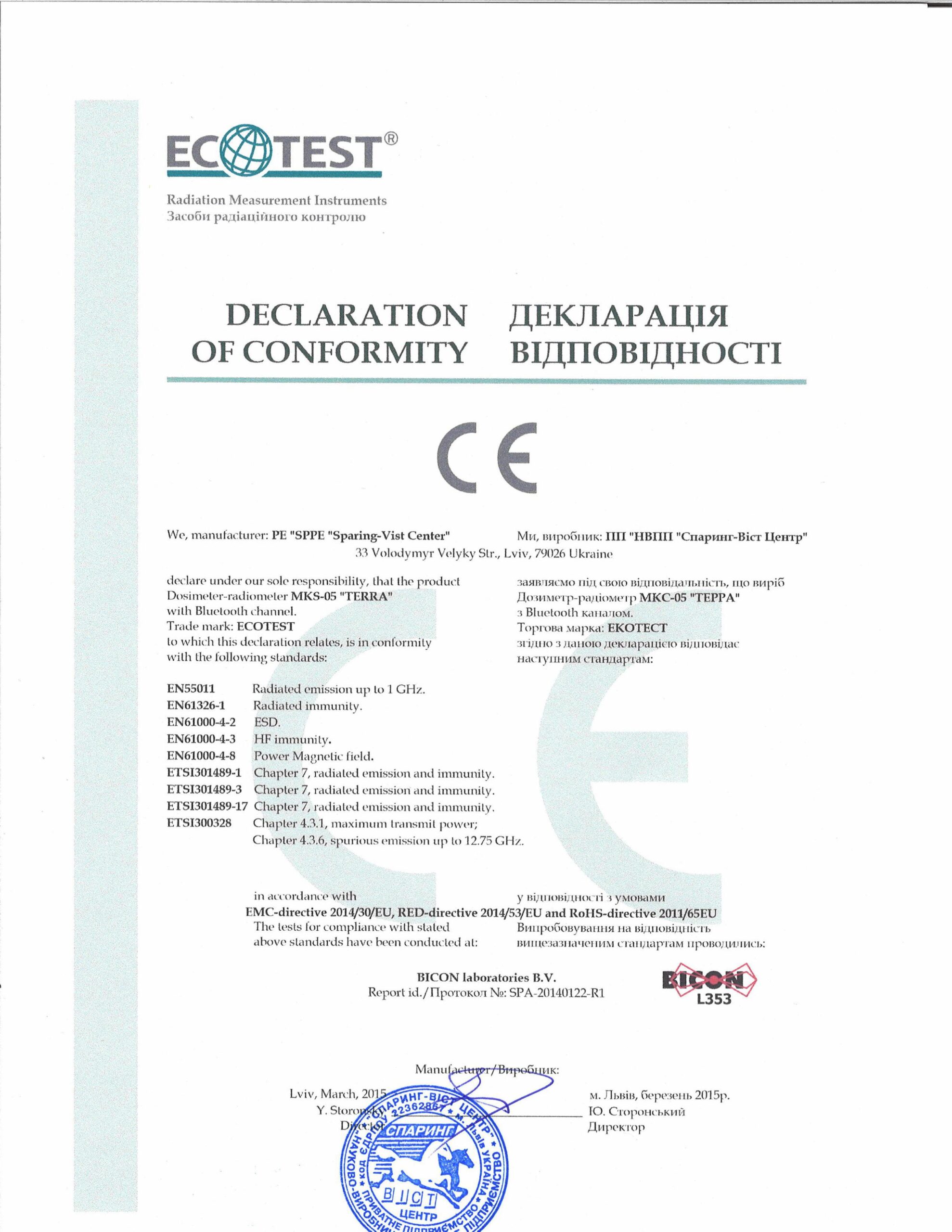

  • Declaration of conformity with the CE standards. The tests for compliance have been conducted at BICON laboratories B.V. (the Netherlands)

  • Pattern Approval Certificate of Measuring Instruments # 35311 of August 08, 2009 (РФ 40621-09 number in the State Register for Measuring Instruments), Russian Federation

  • Conformance Certificate of Measuring Instruments with the Approved Pattern № 11353 of November, 24 2014 (KZ.02.03.06309-2014/У1524-07 number in the State Register for Measuring Instruments), Kazakhstan

  • Pattern Approval Certificate of Measuring Instruments # 03.09.4055 of September 08, 2003 (RE-BG03-4055 number in the State Register for Measuring Instruments), Bulgaria

  • Conformance Certificate of Measuring Instruments with the Approved Pattern № 02.2087 of March 30, 2007 (02.1556-07 number in the State Register for Measuring Instruments), Uzbekistan

Delivery Kit

  • MKS-05 "TERRA" dosimeter-radiometer;
  • operating manual;
  • leather case;
  • "Cadmium ECOMONITOR" software;
  • packing box.

“Cadmium ECOMONITOR” Software

Is used for:
  • readout of measurement results from the dosimeter memory into the PC as a dosimeter measurement protocol;
  • viewing measurement results on the PC monitor, preparation and printout of the report, saving measurement results to a file without changes or as a report for further use.
